THE NEW BENCHMARK

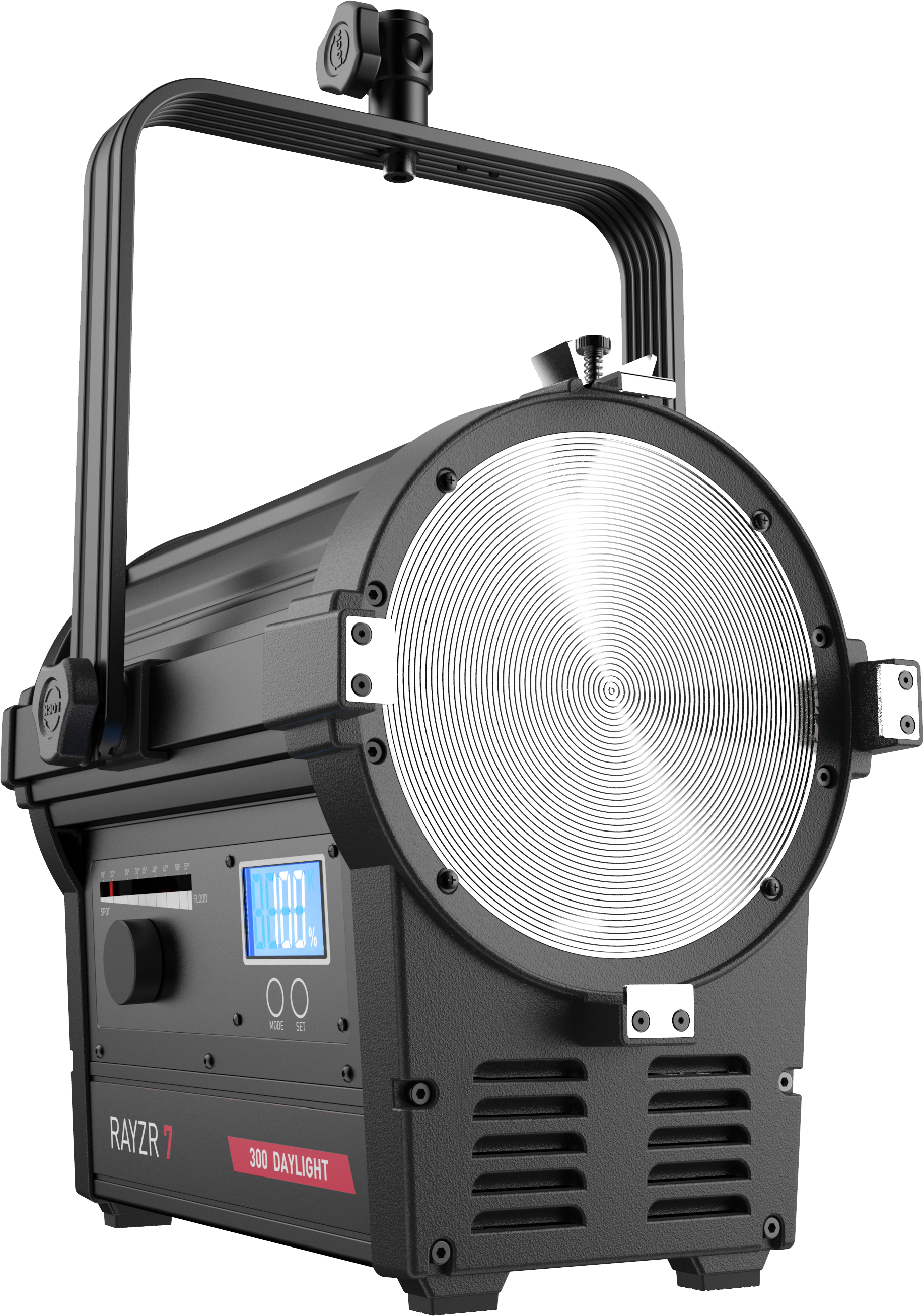

7" LED FRESNEL


TLCI 98 . 300 W . 6KG

We packed 300 Watt of high powered quality (TLCI up to 98) LED’s into a compact and lightweight 7” fresnel to give you one of the brightest, and yet one of the most mobile LED fresnels on the market. The all new Rayzr 7.

Bright
Flicker Free
TLCI 98 LEDs
Cool
Energy Efficient
AC or Battery
Long LED Lifetime

Taking LED Fresnels

To The Next Level

Introducing Rayzr 7, a new series of 7” LED fresnel lights that finally make professional quality lighting accessible. The Rayzr 7 series consists of 4 different models, varying in light output and color. All are designed as a true alternative for traditional tungsten lights, outperforming them in brightness and power consumption and equalling them in light quality and control.

​

For the development we focused on four core concepts:

​​

Light Quality, Lighting Control, Brightness and Mobility



as these were the main points that our research among filmmakers showed are most important. Now after two years of development we are proud to present a durable, light weight and compact 7” fresnel with more than excellent light quality, industry standard lighting control options and best in class light output.

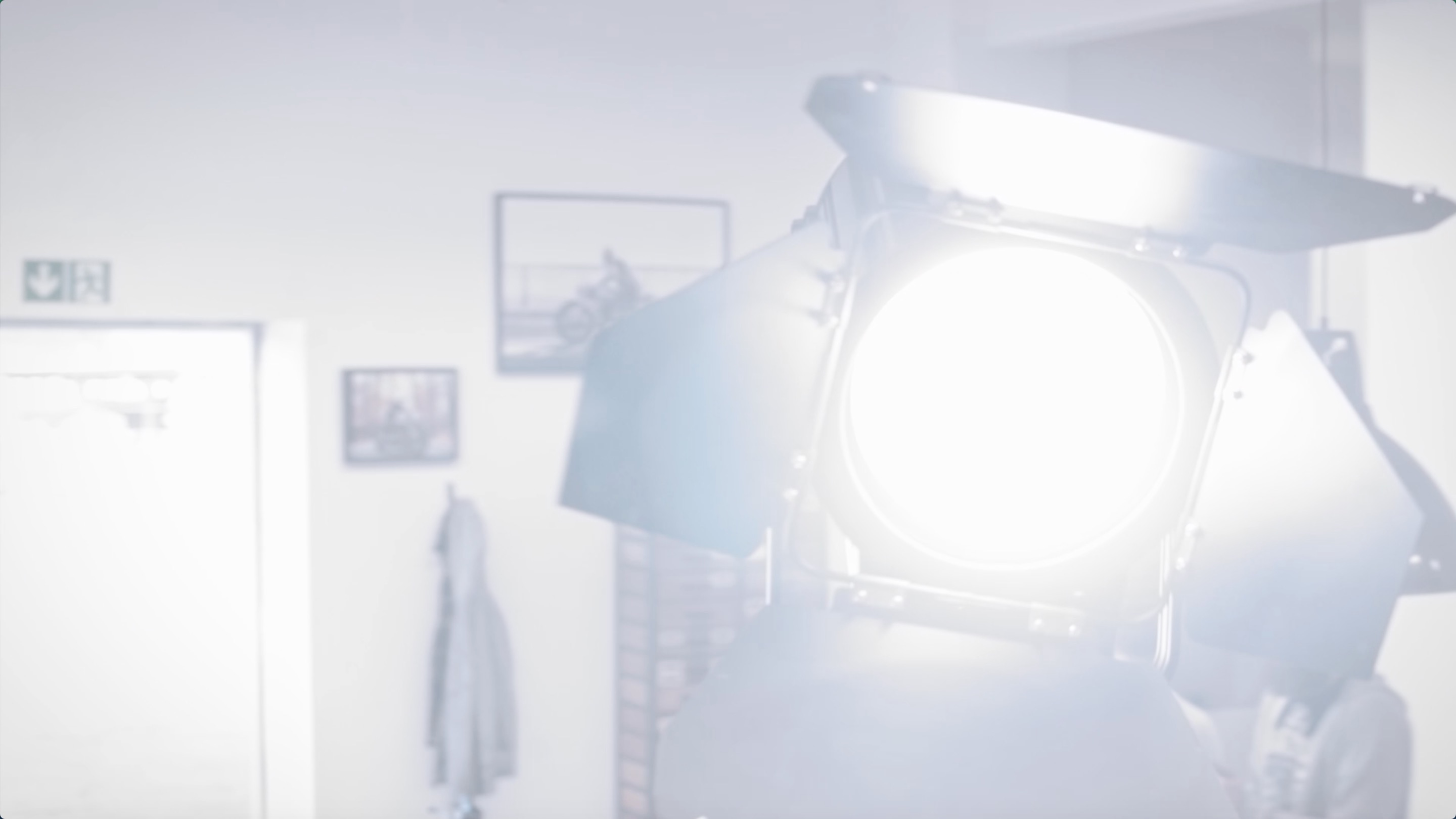

> Brightness

The Brightest Of Its Class

The Rayzr7 LED fresnel series is approximately 50% brighter than similar traditional 1K (1000W) tungsten lights and the brightest 7” LED fresnel in its class, matching the light output of other 10” fresnels. With a maximum of 10675 lx@3m | 18° and flicker free performance up to 15000 fps it provides enough power for a wide range of applications, from still life to high-speed.

Color

Flicker free up to 15000fps

No brightness loss at daylight or tungsten compared to mixed color temperatures, as is common with other bi-color fixtures.

10675 lx @ 3m | 18°

1.5 times brighter than 1K (1000W) tungsten fresnel

Suited for even the most light hungry application

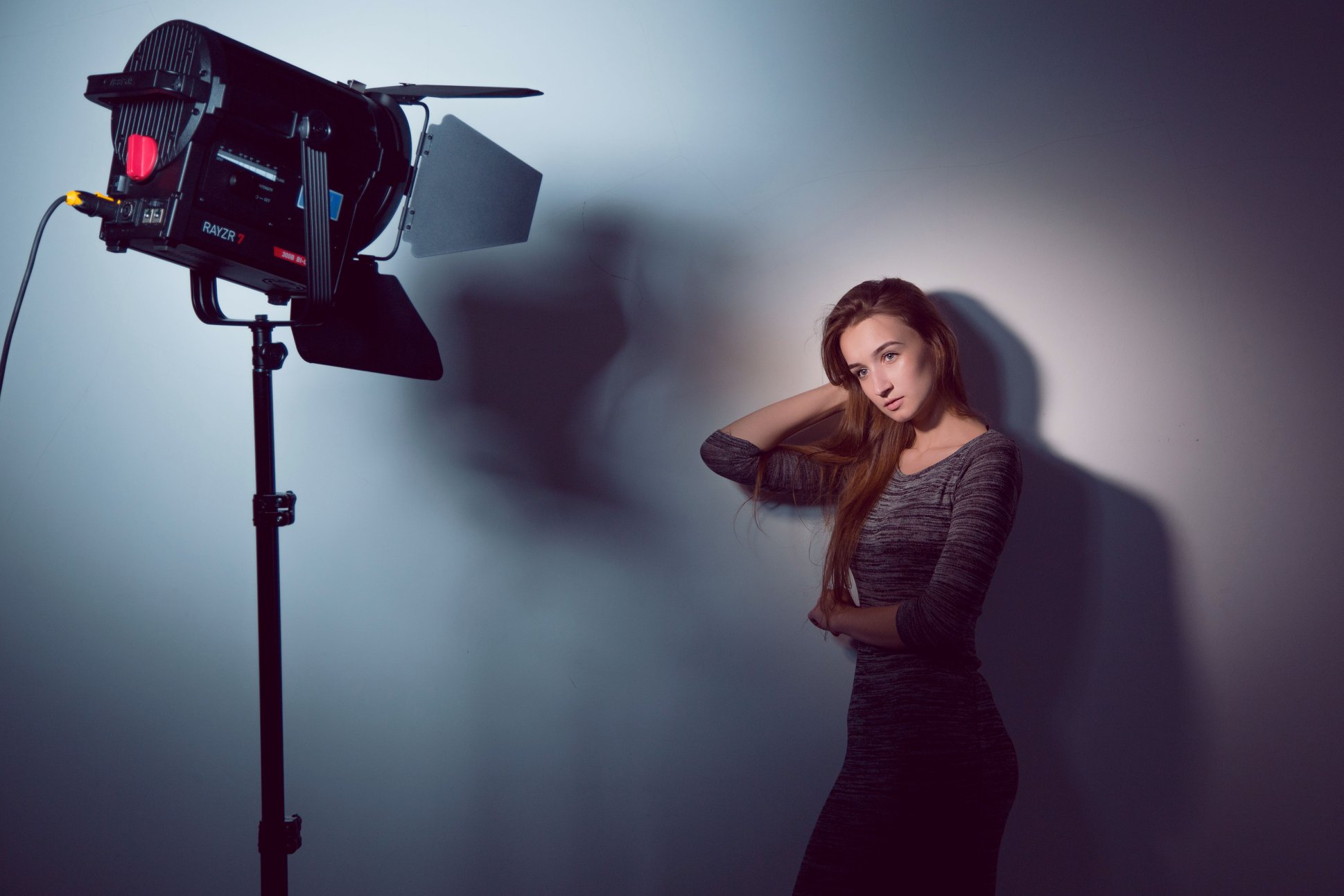

More Brightness

More brightness than its competition of equal size opens up new possibilities of more distant fixture placement, to get the light further away from the subject and have a more natural wrap.

> Color

Absolute Color Accurate White Light

The RAYZR 7 fresnel series is at the forefront of color accuracy, producing pure white light with truthful color rendition and an average TLCI of up to 98, which is leading in the industry.

TLCI up to 98

Skin Tones

Capture the smallest details and slightest color gradients like skin tones precisely and accurately.

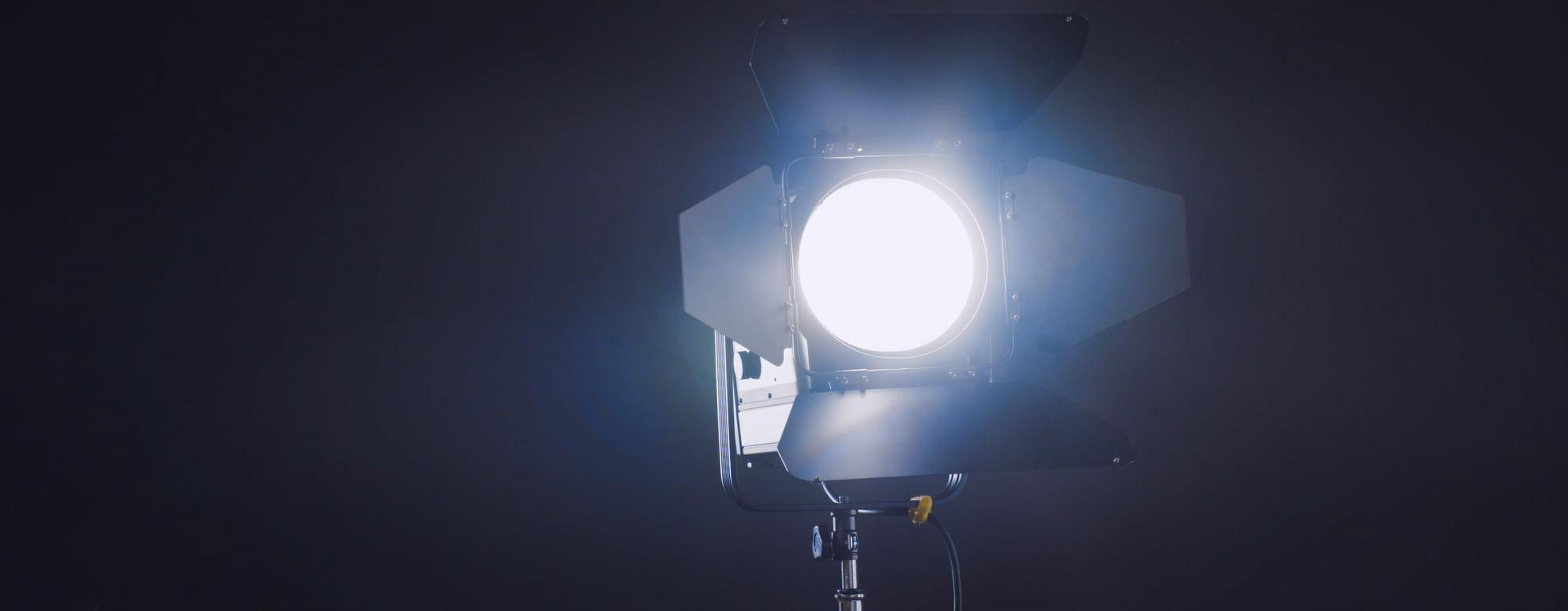

Color Chart

Measured at TLCI 98, the Rayzr 7 provides excellent color reproduction across the entire spectrum. This ensures the same great and vibrant color reproduction on different camera sensors.

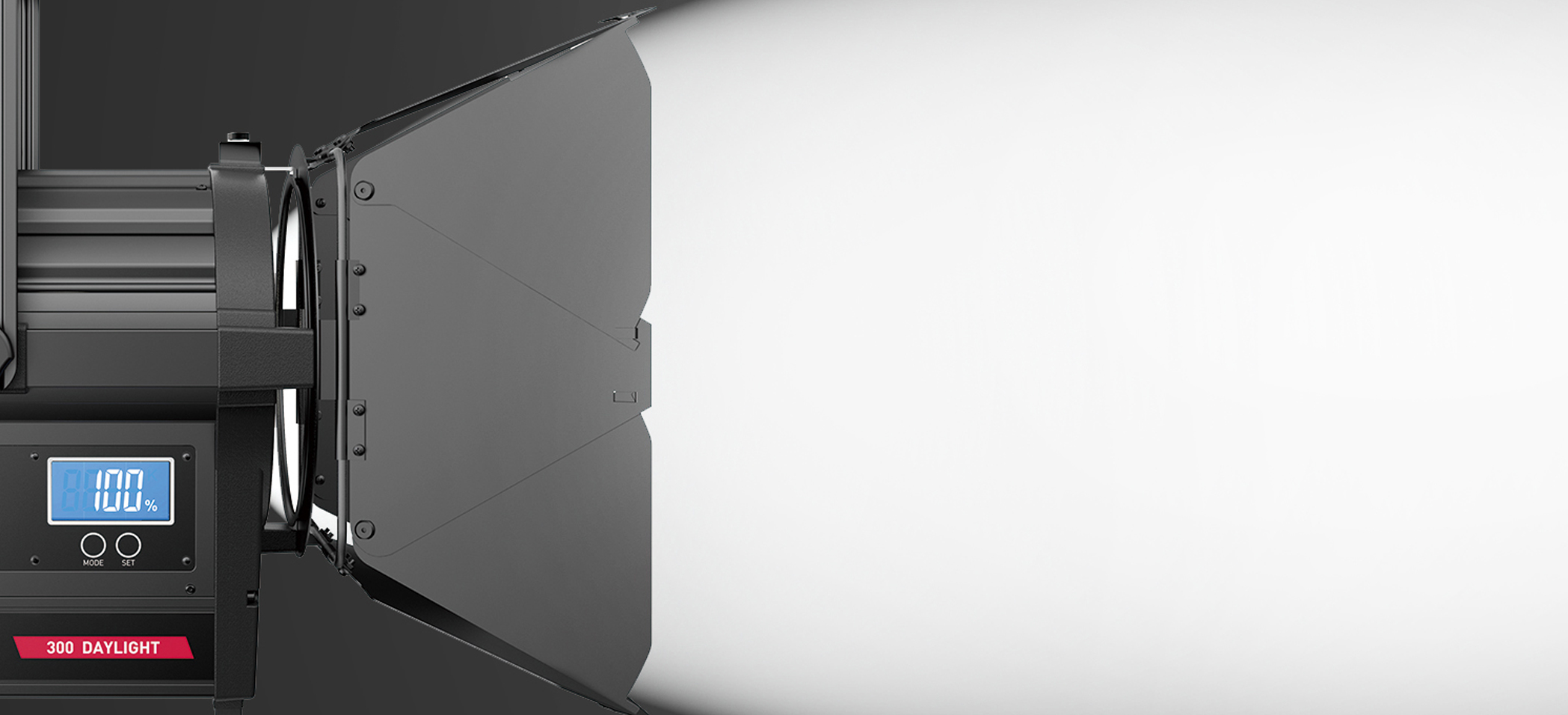

Pure White Light

Because of our unique lens design, we can prevent chromatic aberration (color fringing) that is common for many fresnel fixtures.

>  Control

You Are In Control

Shape The Light As You Want And Neen It.

The RAYZR 7 creates an even and uniform light beam that you can control directly on the fixture regarding the beam angle – from spot to flood continuously with the turn of the focus knob. Shape or soften the light with a variety of accessories like barndoors, softboxes, snoots and more. As the attachment system is compatible to ARRI you might already own many shaping tools that you can reuse with the RAYZR 7.

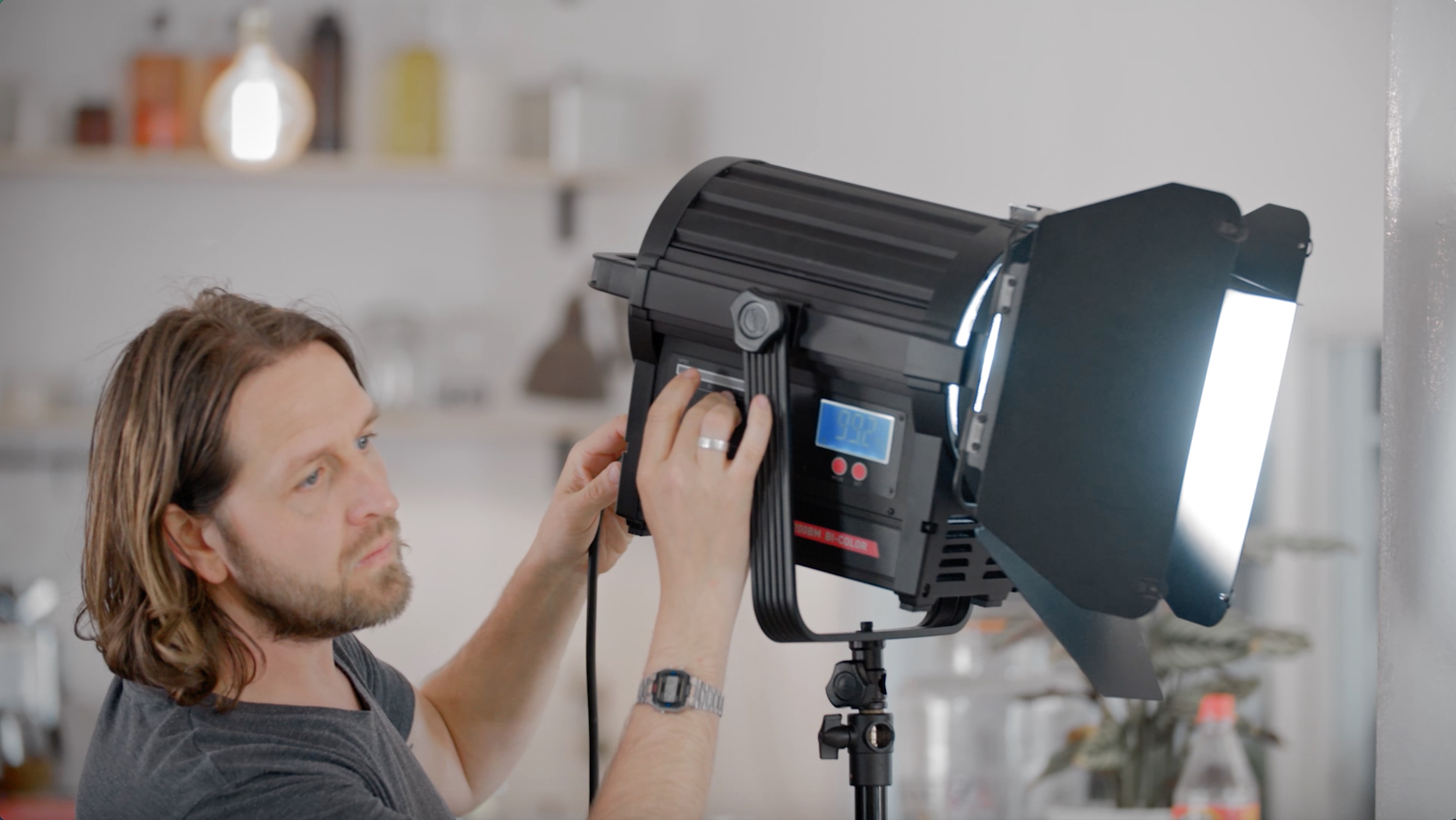

Spot > Flood

One key strength of a fresnel is its versatility. With the turn of the focus knob you can go from flood to spot easily to evenly light a scene or put a focus on a subject.

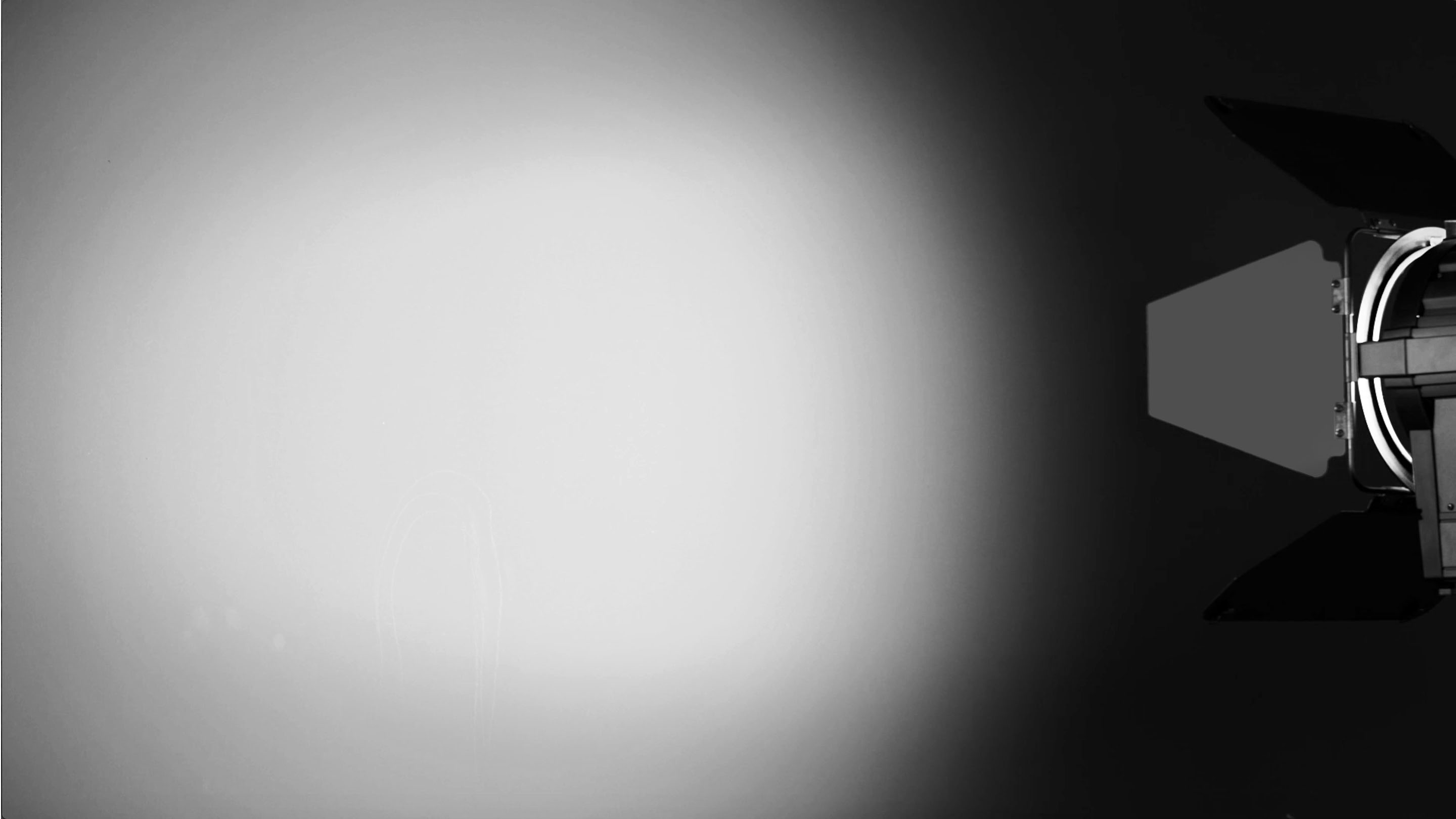

Even Light Field

Unlike other fresnel lights the light distribution of the Rayzr 7 is even and homogenous without circular brightness differences or hotspots.

Enough Brightness To Modify With Accessories

As previous generations of LED fresnels were not bright enough, many accessories like soft boxes, filters and others that reduce the brightness were not really an option. The Rayzr 7 is finally a true tungsten replacement also regarding brightness and opens up much more possibilities to shape the light as you need it.

DMX Built-In

Integrated DMX module with RJ45 (Ethernet) connectors for remote control using DMX512 protocol & additionally an optional Wifi module will be available.

WIFI module optional

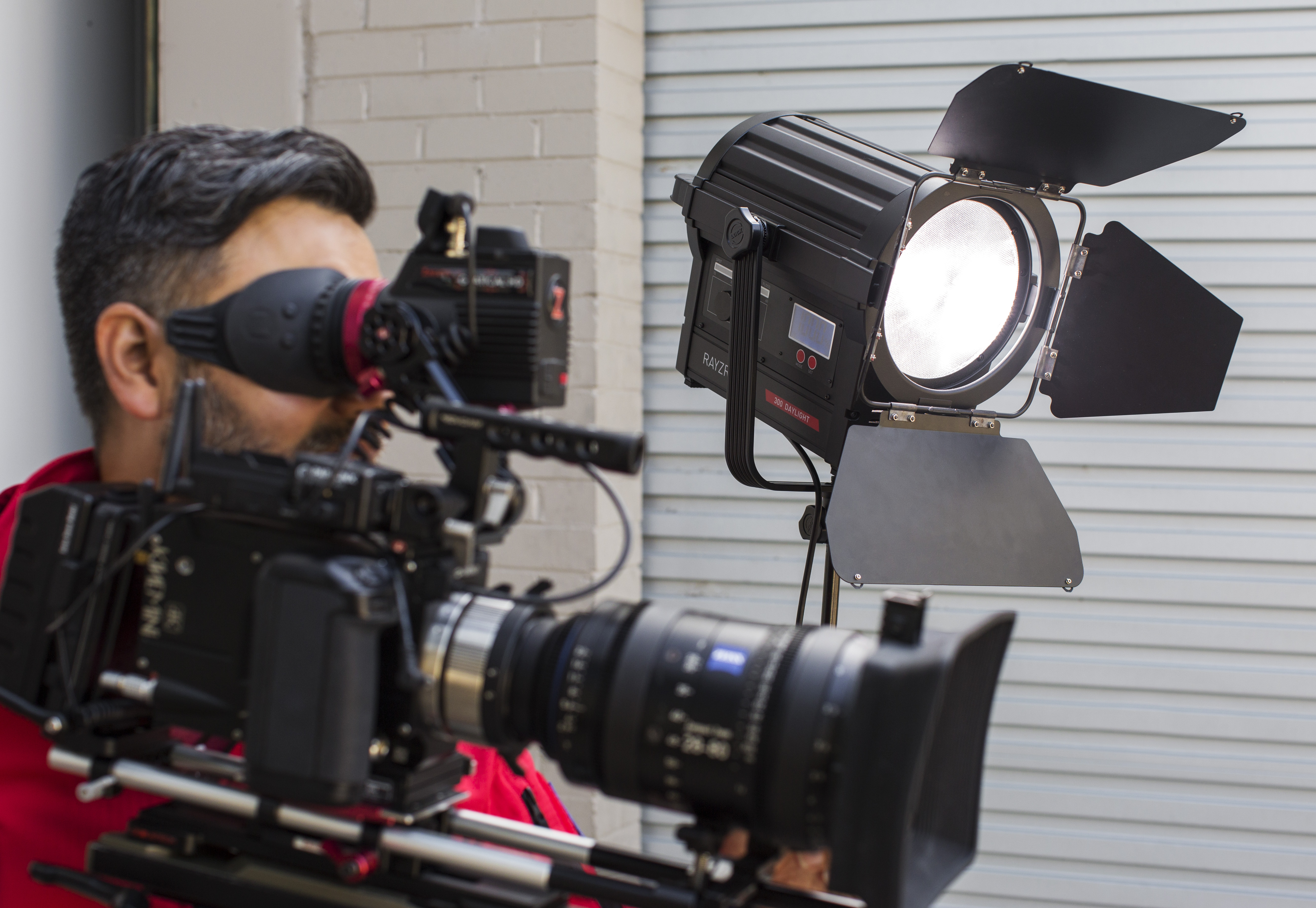

>  Mobility

Compact And Lightweight

With a weight of only 6.4 kg (14.1 lbs), the Rayzr 7 is much lighter than most other professional fresnels. Coupled with its strong and durable housing, the lightweight Rayzr 7 is the ideal solution for on-location shoots.

The RAYZR 7 packs the brightness of 10" fresnel into the compact form factor of a 7” fresnel without any sacrifices.

On The Run, Powered By Battery

Because of its power efficiency, the RAYZR 7 can be powered from batteries without any reduction in brightness. Bulky generators are no more needed, which reduces costs in multiple ways and makes life so much easier.

True Tungsten Replacement

Compared to tungsten fresnels, the RAYZR 7 achieves the same brightness with less than a third of the power consumption. The reduced electricity usage equates to lower costs and simpler and cheaper installations as the fixtures can be run from a standard power line.

In comparison to tungsten and HMI lights, LED fixtures have almost zero maintenance costs as you don’t need to buy new bulbs. The LED light engine lasts about 200 times longer than tungsten lamps.

VS

Energy
Efficient
Cool
Lower
Costs
AC or
Battery
Long
Lifetime

TRADITIONAL FRESNEL

Don’t Just Take Our Word, Here’s What The Pros Say

"My Rayzr 7 combines accurate color reproduction, superb light output, shaping control & energy efficiency, all in one package! I like these puppies, a lot!"

— Clinton Harn, Filmmaker

"The Razyr 7 combines color accuracy & light output of a tungsten fresnel with the power efficiency and usability of an LED unit."

— Phil Arntz, Cinematographer

"The Rayzr 7 is by far my favourite fresnel light. High lumen output, great colour rendition, low power consumption - even runs on a brick. To me, HMI has become obsolete."

— Eduard Schneider, Filmmaker

"I love to work with the mobile Rayzr 7 set. It is the first time we can fly to a shooting with three high power LED Fresnel lights under 32kg in one flightcase."

— Alexander Fuhrmann, Cinematographer

Models


300 DAYLIGHT


300B BI-COLOR


200 DAYLIGHT


200B BI-COLOR


Bi-color

3,200 K - 5,600 K

LED power

100 W + 100 W

Beam angle

18° - 50°

Battery 12 - 24V DC

Silent passive cooling

Daylight 5,600 K
LED power 200 W

Beam angle

18° - 50°

Battery 24 - 36V DC

Advanced vapor cooling system

100% brighter than Rayzr 7 - 200B


Bi-color

3,200 K - 5,600 K

LED power

150 W + 150 W

Beam angle

18° - 50°

Battery 24 - 36V DC

Advanced vapor cooling system

Daylight 5,600 K
LED power 300 W

Beam angle

18° - 55°

Battery 24 - 36V DC

Advanced vapor cooling system

100% brighter than Rayzr 7 - 300B
