400 W . 6 KG . 120°

THE BRIGHTEST COMPACT

& SOFT RGBWW LIGHT

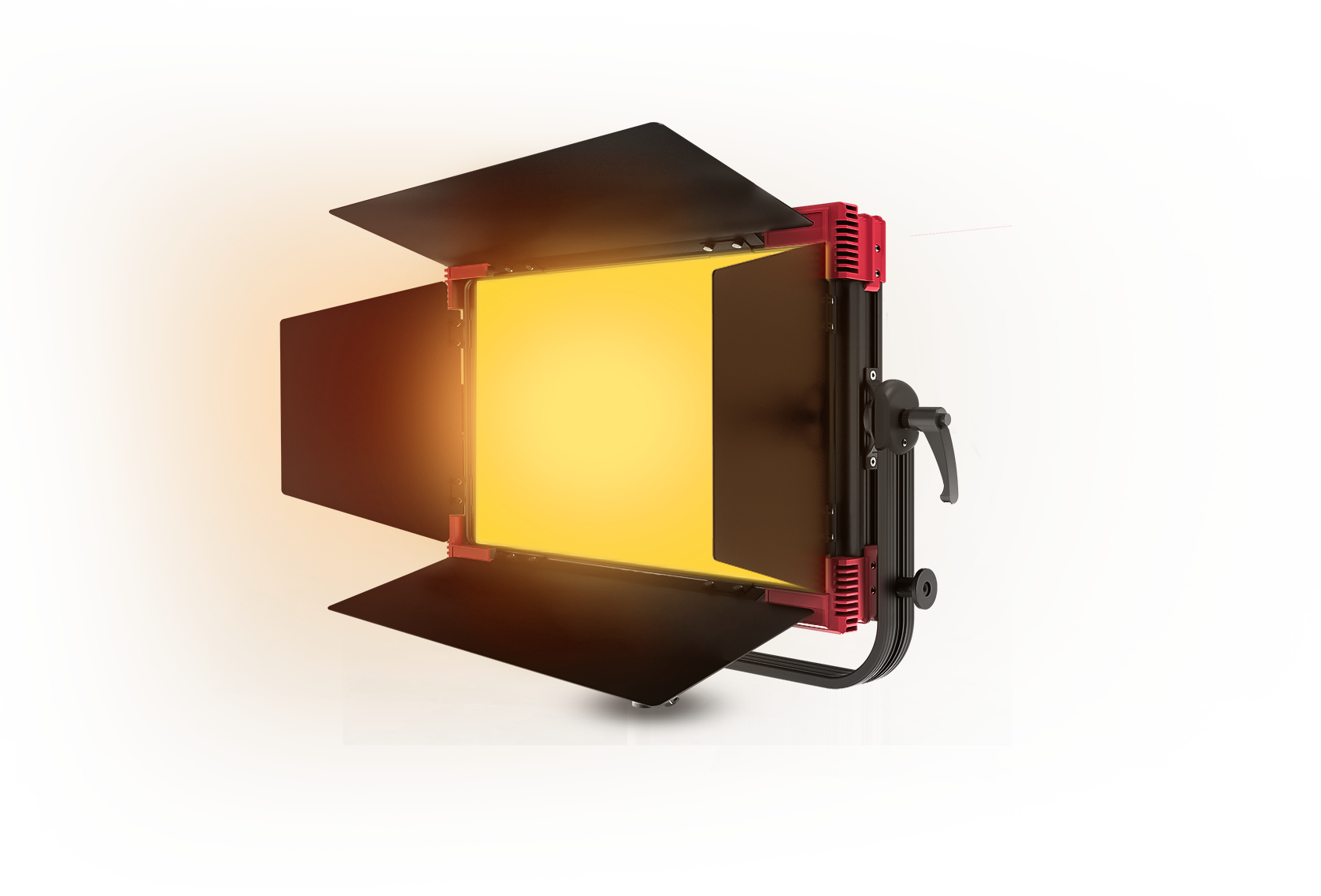

The Rayzr MC 400 Max gives you maximum performance in a thin, compact and lightweight form factor. A 400W LED light cooled efficiently by an ultra-quiet, active cooling system. RGBWW LEDs provide perfect color reproduction in white light and throughout the whole color spectrum for realistic lighting or to support your creative adventures.

Mimic Any Light
Source Match

Maximum Brightness

Wide CCT Range
2400-9900K

Ultra-Quiet Cooling

± Green / Magenta Adjustment

Compact & Lightweight

More Than 300 Digital Gels

Battery Powered

Creative Freedom
RGBWW + Effects

High-Speed Mode

Our Brightest

RGBWW Soft Light

Meet the Rayzr MC 400 Max. Keeping the same dimensions as the MC 200 but doubling its output by using 8 ultra-silent active cooling fans to keep 400W of power in a cool and controlled environment for long term stability. Making this brightness available in such a thin and lightweight housing opens up many new opportunities where and how the light can be used and how it can be rigged. Rayzr MC 400 Max: bringing you maximum brightness in minimal size.

> Maximum Performance - Minimum Size

Maximum Brightness

The MC 400 MAX provides the maximum brightness possible in such a compact form factor.

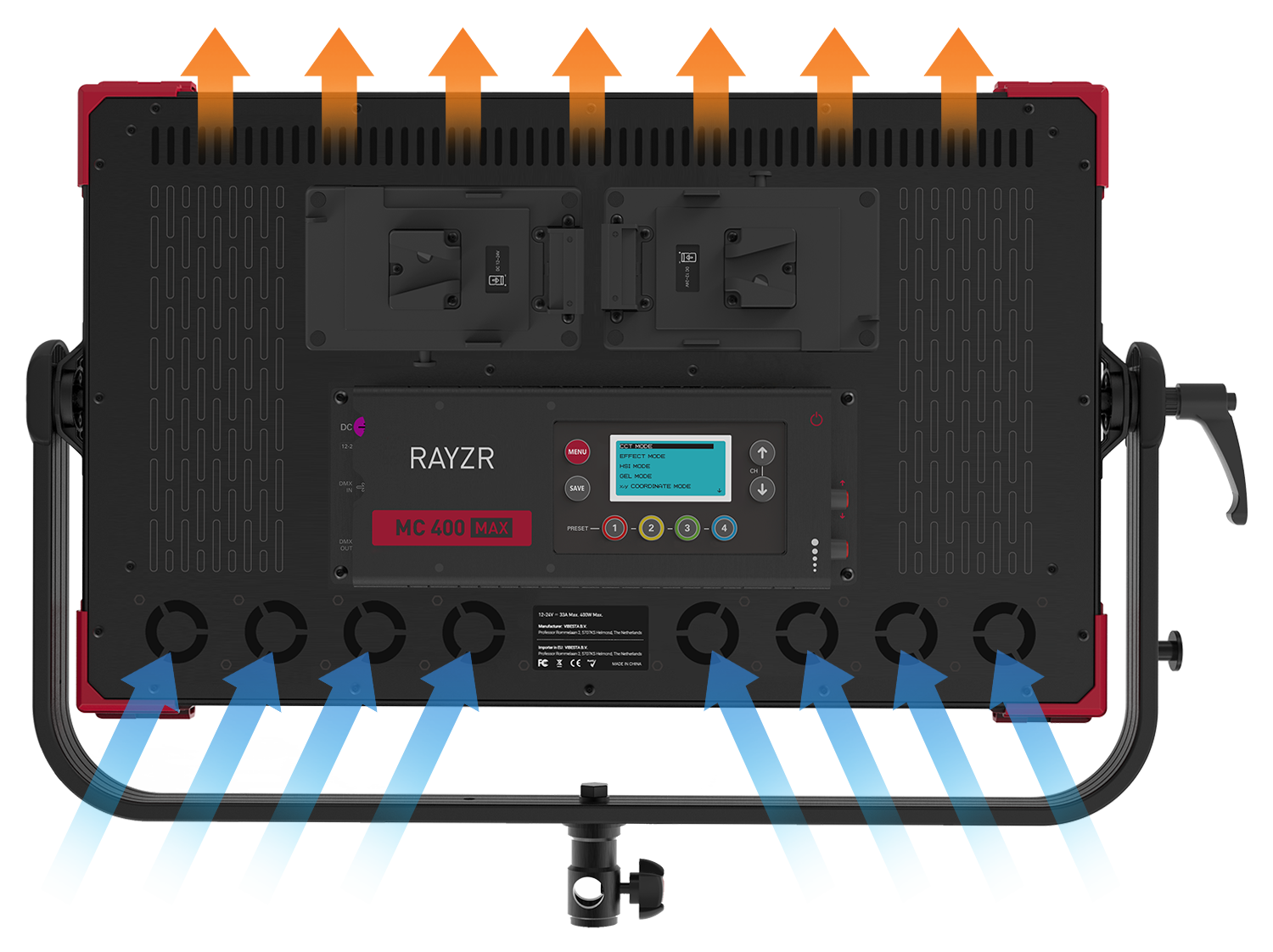

Ultra-Quiet Cooling

The ultra-quiet cooling system of the MC 400 MAX keeps the LEDs at a stable temperature at all times for long lasting, consistent performance. 8 silent cooling fans create a controlled environment and enable us to built so much power into such a thin light.

18dB

Compact & Lightweight

With the MC 400 MAX we go to extremes, combining maximum brightness with a housing with minimal dimensions, making it easy to rig and a pleasure to use.

93 mm

Net Weight 6 kg

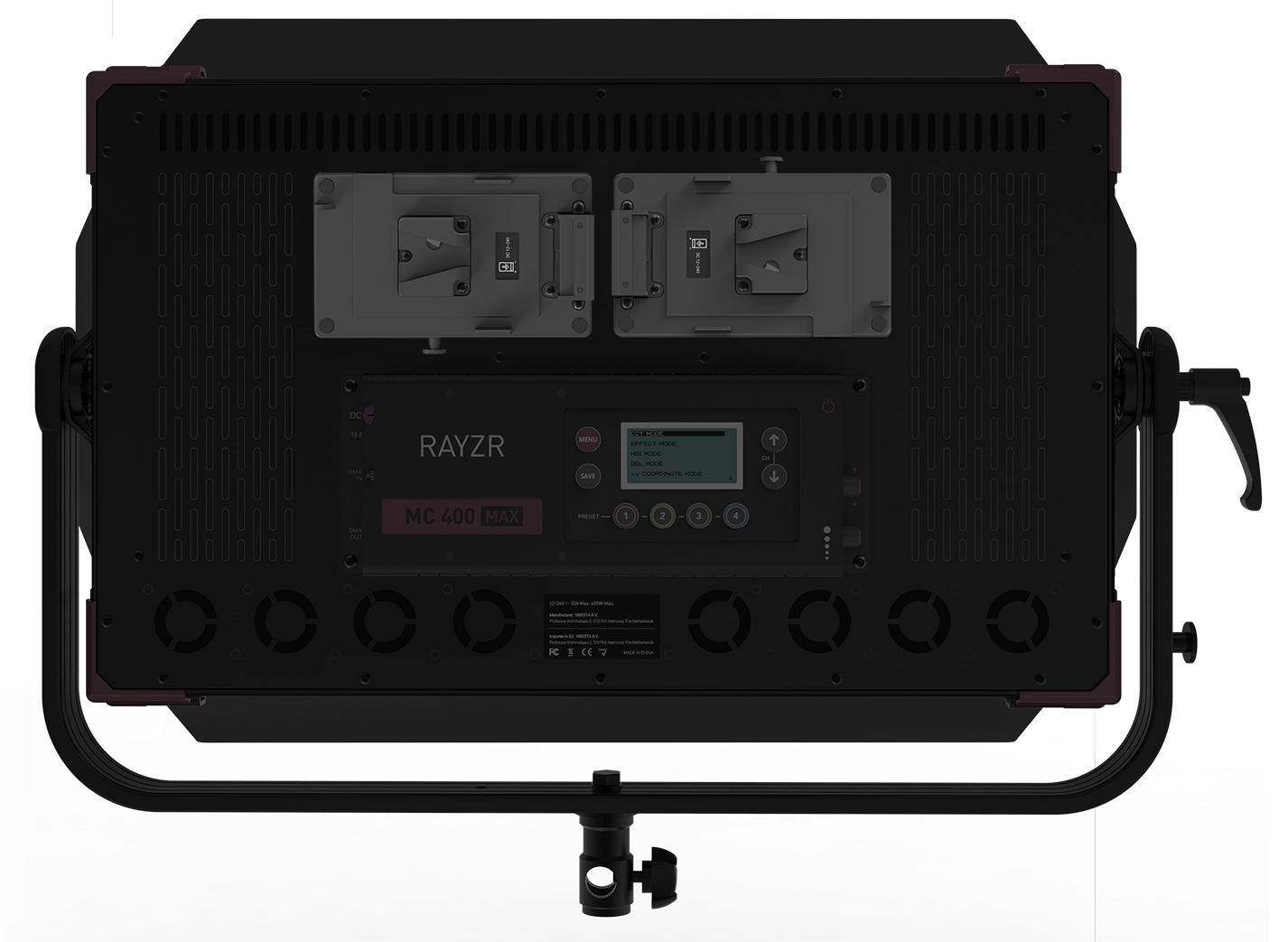

Battery Powered

Power the MC 400 MAX with two standard 14.4V V-Mount batteries at full brightness. No special solutions needed and easy to travel with.

V-Mount #2

V-Mount #1

*MC 400 only supports batteries with output currents higher than 12.5A.

> Source Match

Bring Consistency To Your Lighting

With Source Match you can make your lighting more consistent and save time in post fixing non matching lights . Our powerful light engine, utilizing the strengths of RGBWW LEDs, enables you to match any light source. Enter the x/y coordinates you measured and the MC series will be an exact match bringing consistency to your lighting.

SOURCE MATCH

LED

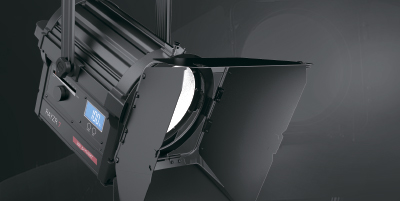

HMI

Tungsten

Fluorescent

Sun

Extended CCT Range

With an extended color temperature range from 2400K to 9900k in White-Light mode you can adapt to any ambient light quickly.

2400 K

9900 K

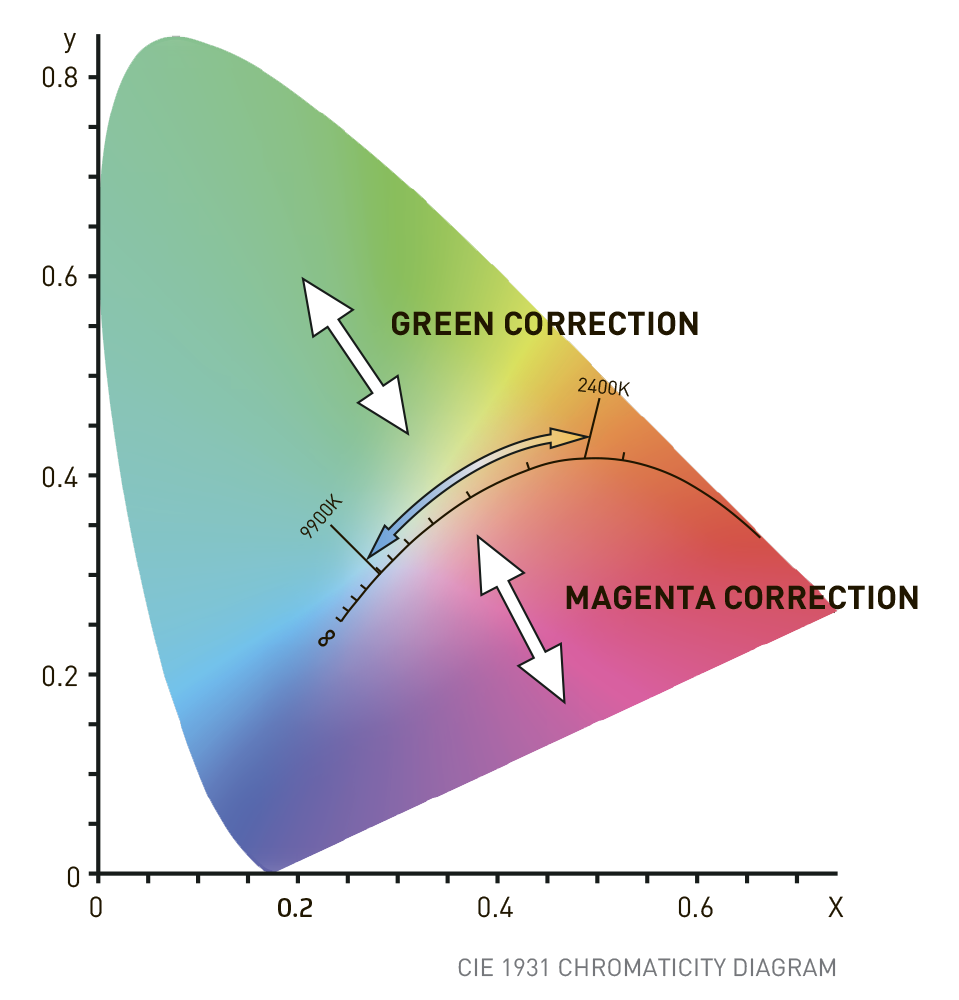

±Green / Magenta
Adjustment

Adjust to a tint in other lights easily with ± Green / Magenta compensation.

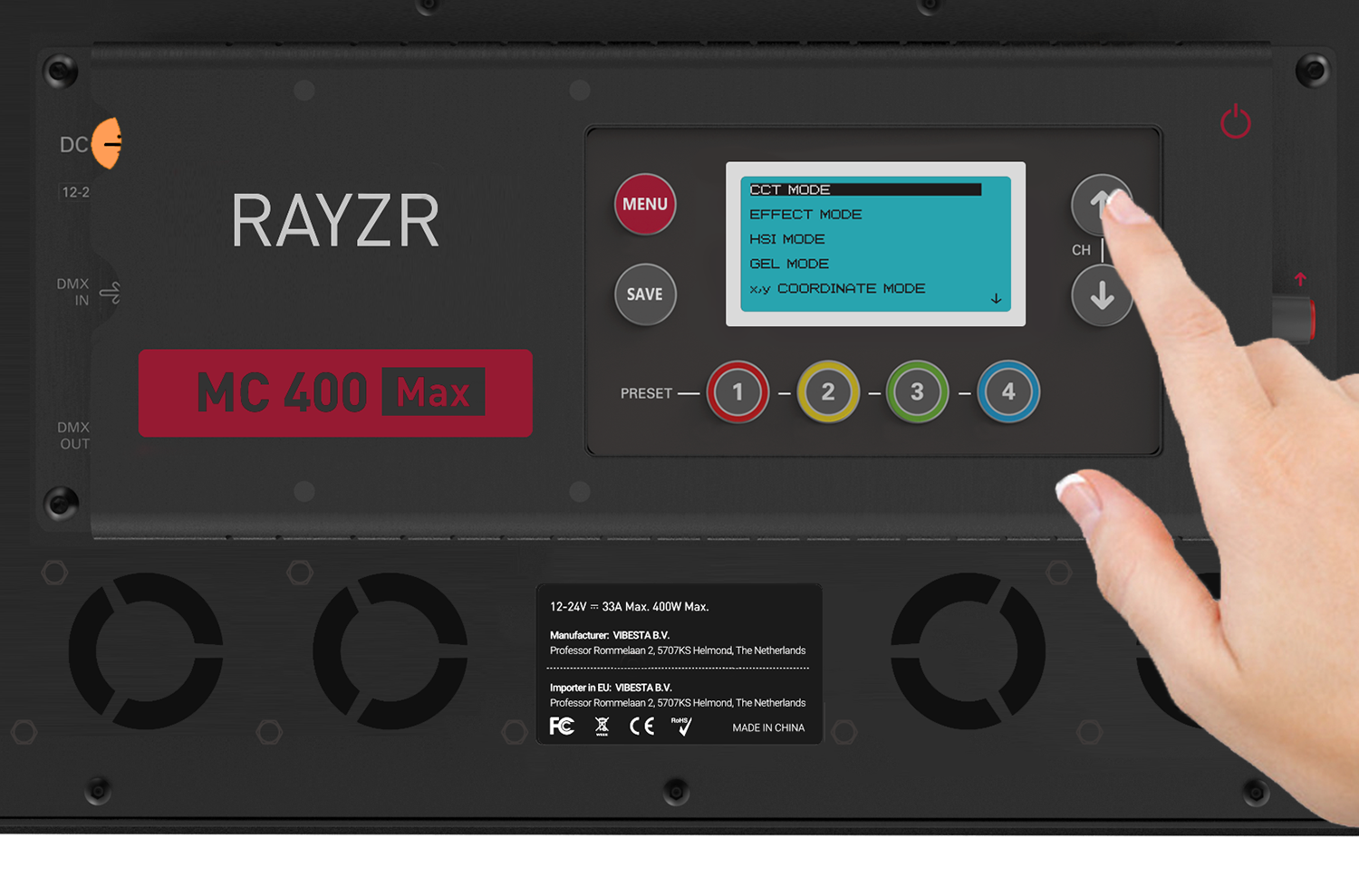

Filter Library At Your Fingertips

The MC Panel Gel library consist of more than 300 widely used filters available to you at your fingertips. No light loss, no GELS you need to carry with you, all filters digitally built-in.

> Creative Freedom

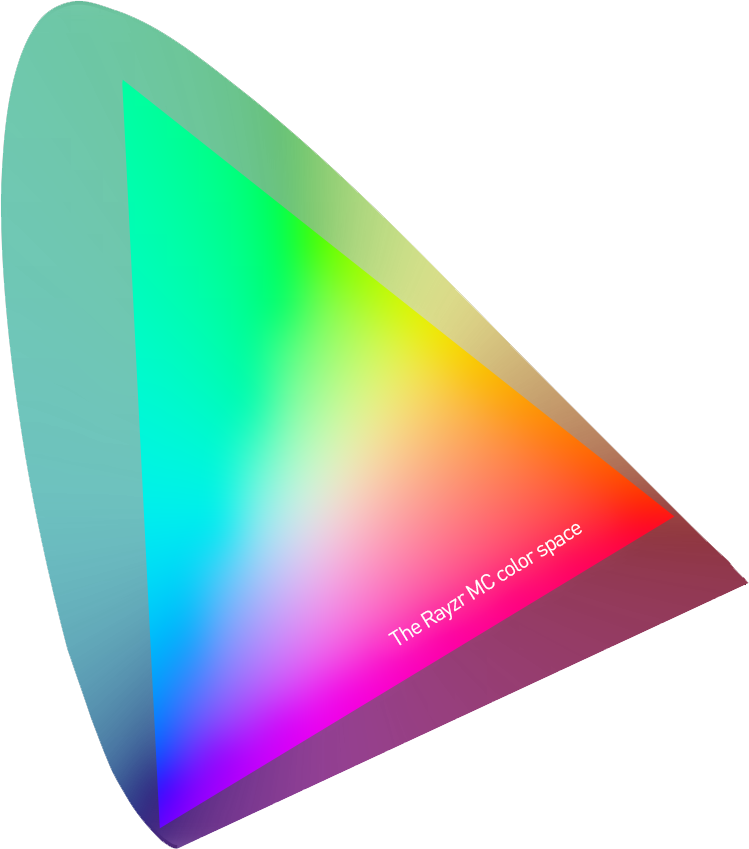

Fully Color Tunable
RGBWW Light

Every color available at your disposal. Select the color you need by HSI values (Hue angle, Saturation, Intensity), x/y coordinates, RGBWW values or by selecting a digital GEL filter from our built-in filter library of more than 300 classic gels.

CCT Mode

         EFFECT Mode

                  HSI Mode

                         GEL Mode

                               X, Y Coordinates

                                         RGBWW Mode

Lighting Effects

The MC series comes with a wide range of built-in adjustable lighting effects such as Party, Candle, Club, Cop Car, Fire, Fireworks, Light strobe, Lightning and Television.

Party

Candle

Club Light

Lightning

Cop Car

Fireworks

Light Strobe

Fire

Television

Paparazzi

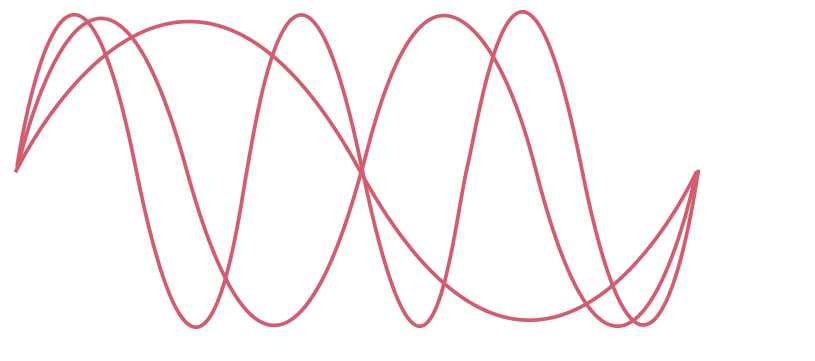

High Speed Mode

Shoot at any frame rate and shutter angle without flicker. The base frequency of the MC series can be adjusted to provide flawless high-speed performance at any settings.

400 Hz ~ 20,000 Hz

> Quality Of Light

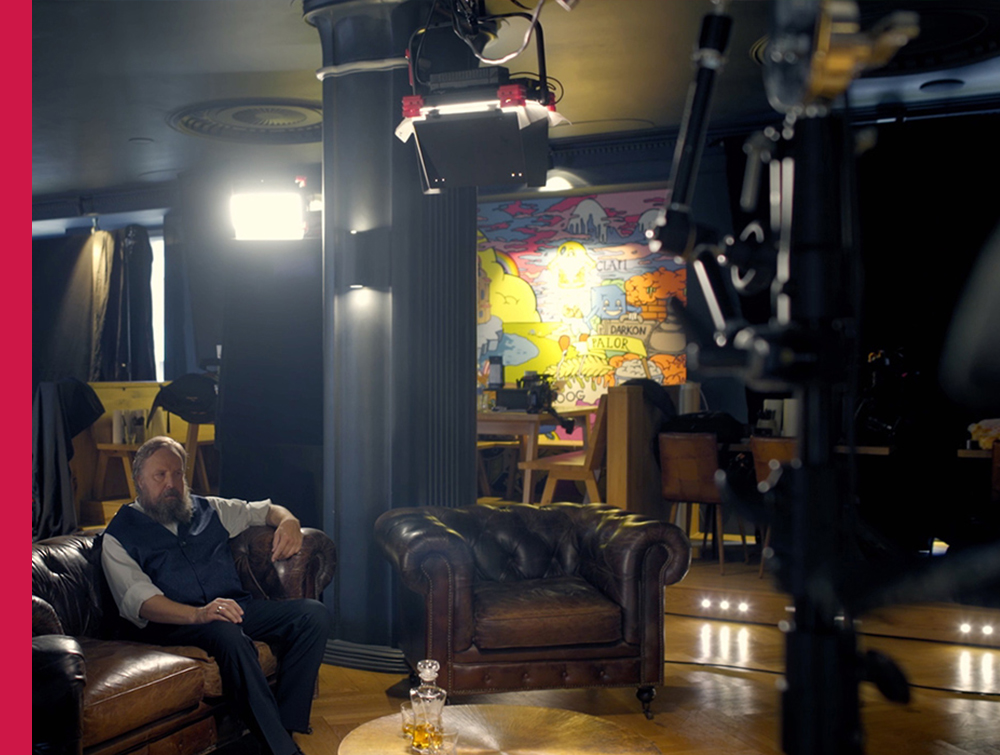

Perfect Color Reproduction

Using the RGBWW LEDs for color but also to improve white light, the MC series offers excellent color rendition throughout its entire adjustment range.

TLCI up to 98

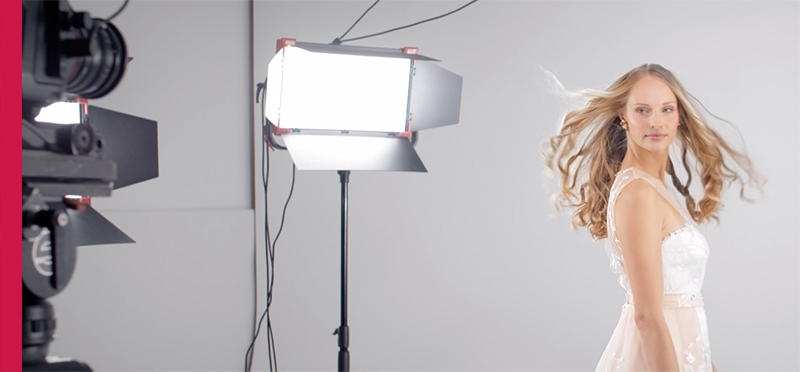

Truly Soft

A fixed diffuser and a wide beam angle result in a uniform beam field and a truly soft light quality.

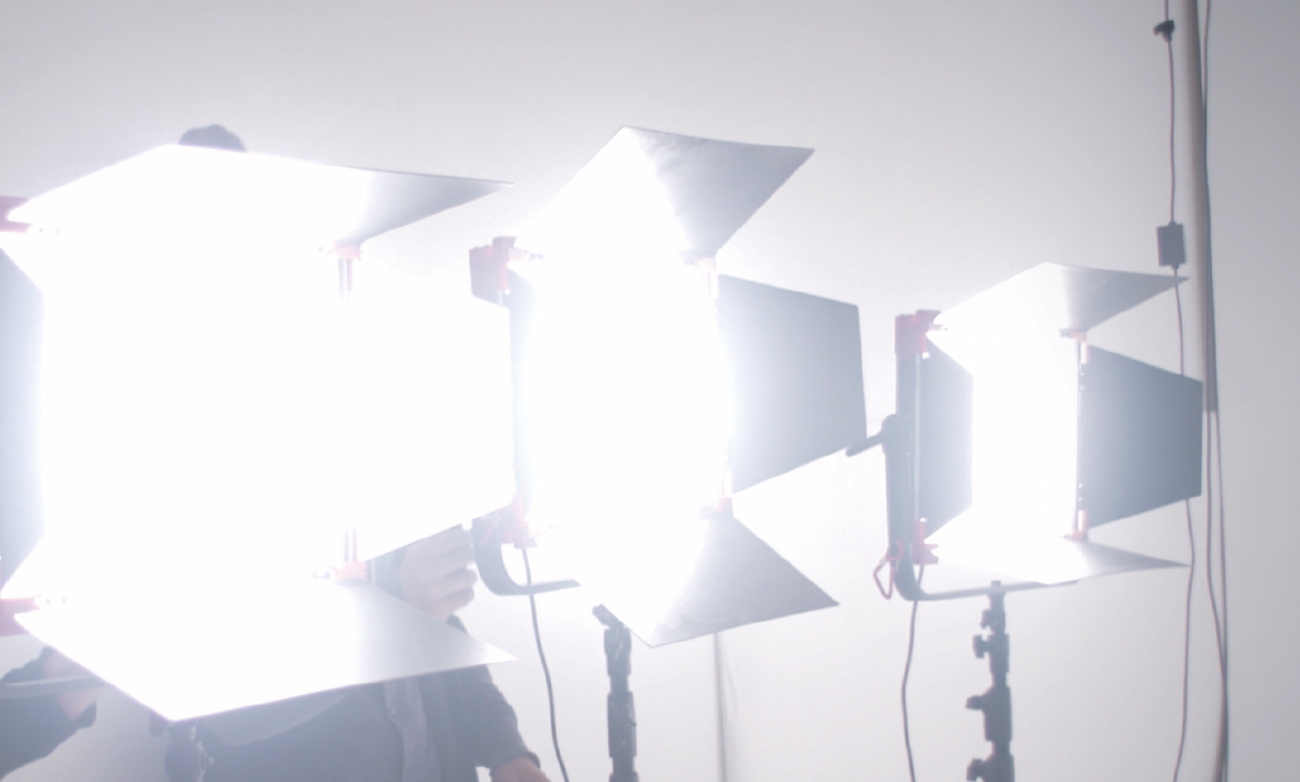

Wide & Bright

Available in three sizes, the MC series ranges from ultra-compact to ultra-soft always providing exceptional brightness and at the same time a wide, uniform beam field.

> Flexible To Use

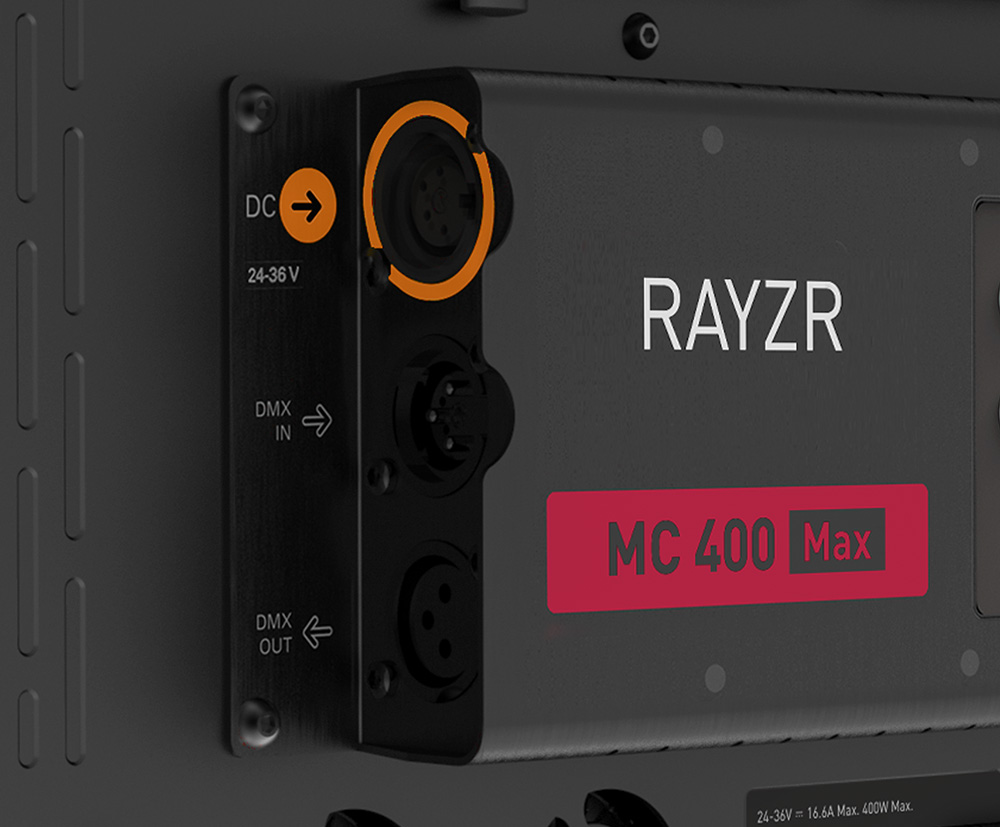

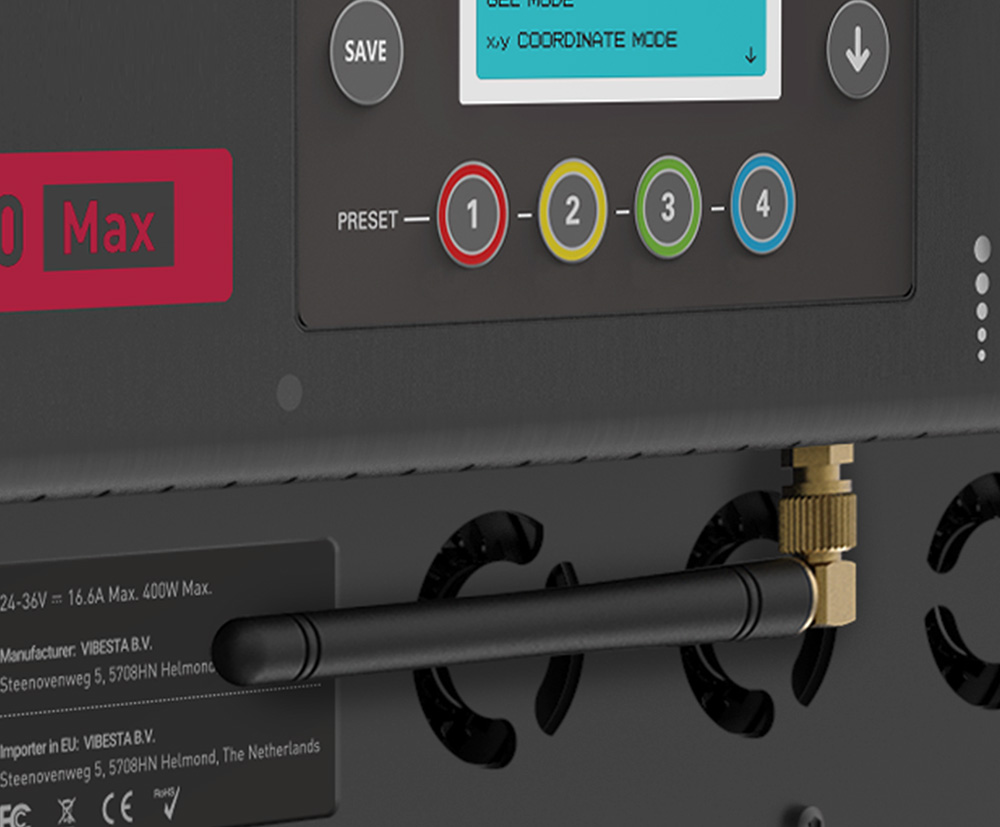

Wireless Control & DMX

With WiFi and DMX built-in, the MC series is easy to control and integrates well into any environment.

DMX built-in

WiFi built-in

Art-Net

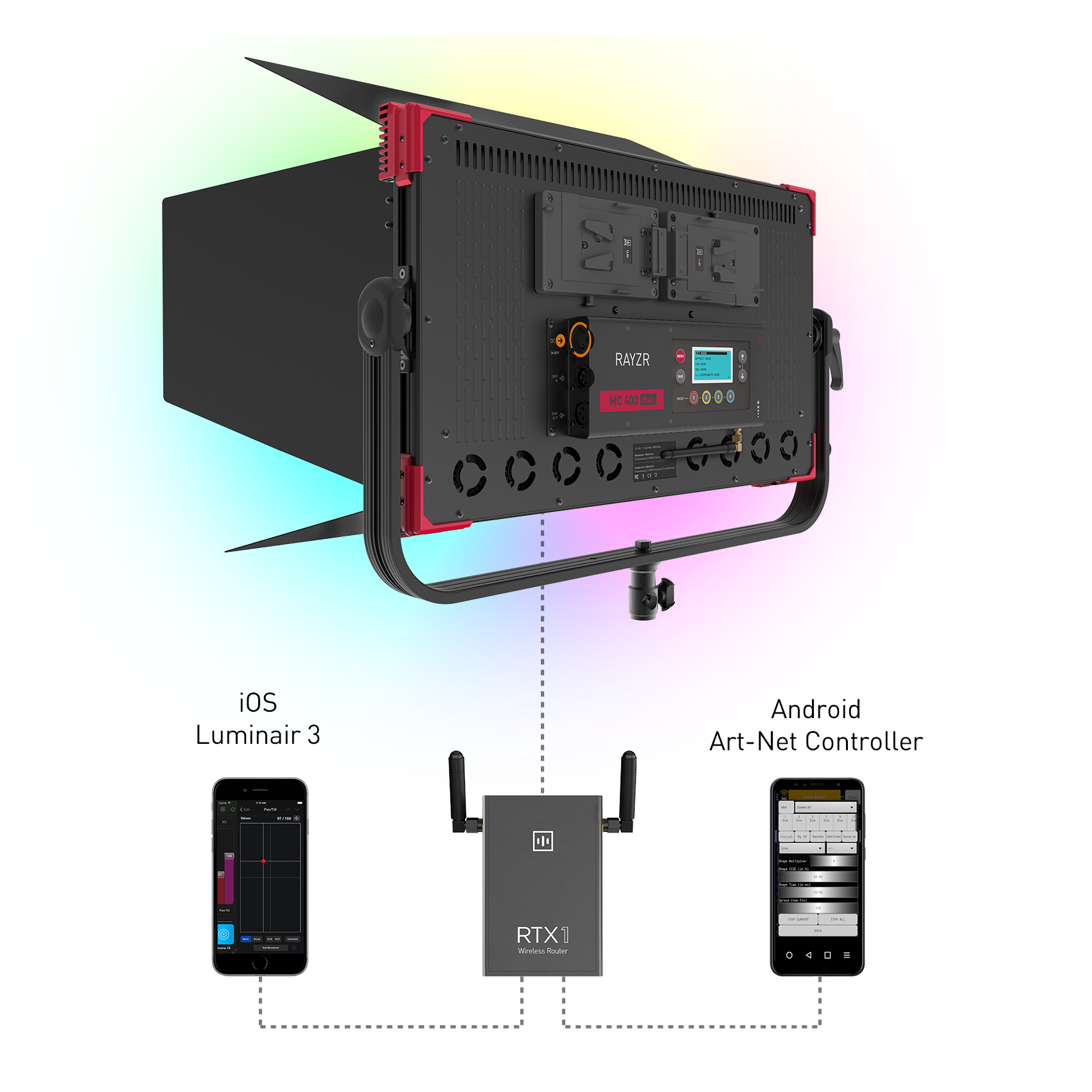

Art-Net Compatible With RTX-1 Router

The RTX-1 router is the central piece to include Rayzr MC lights with other compatible lights into a wireless network that can be controlled by any Art-Net compatible software like Luminair 3 for iOS or Art-Net Controller for Android.

*compatibility depends on software version
Art-Net copyright as before and Luminair copyright as on RTX-1 page

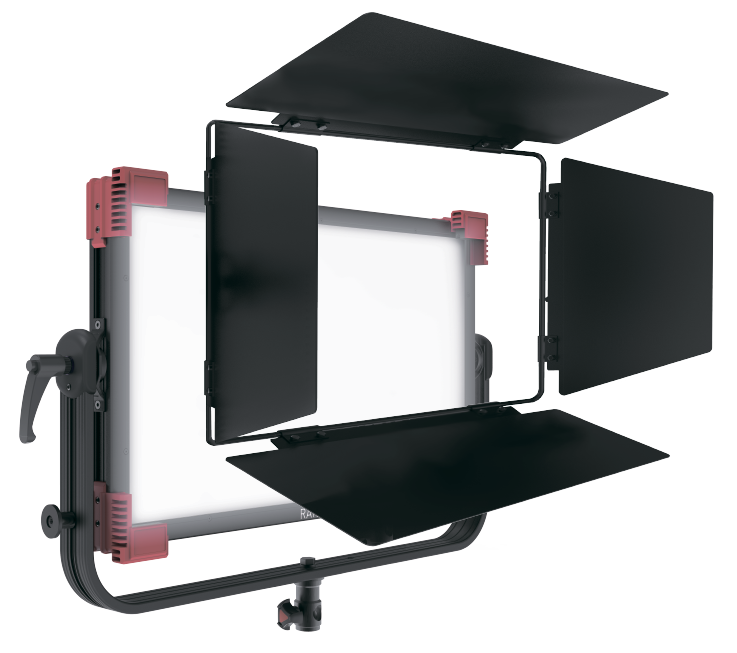

Quick Release
Accessory System

A simple to use quick release accessory system lets you mount light shaping tools in a fast and stable way. Barn doors with extra long leafs are included with every panel.

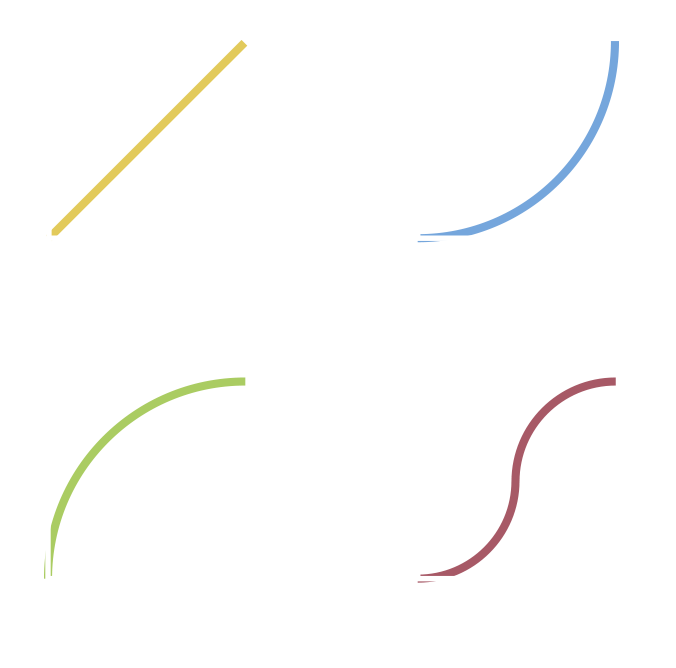

Dimming Curves

Four user-selectable dimming curves provide fine grained control in specific situations: linear being a 1:1 translation, exponential providing fine control in the low end whereas logarithmic provides fine control in the high end and the "s" curve is a combination of exponential and logarithmic.

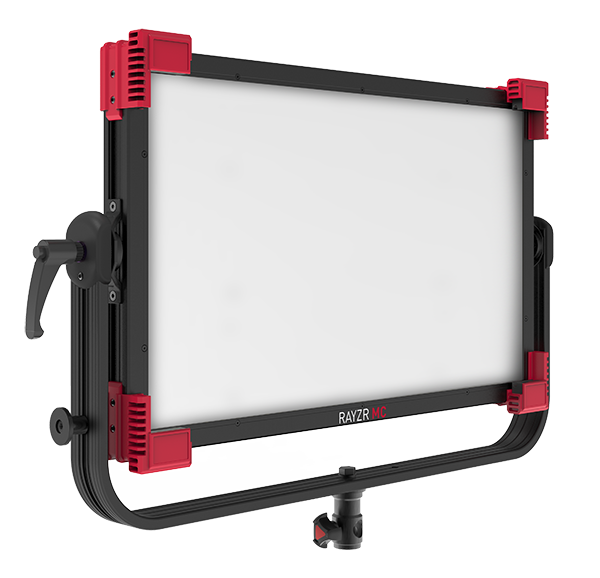

MC 400 Max

2 × 1 Panel

400 W

6 kg

10068 lux@1m
100% 5600K

Recommended retail price

excl. VAT

Models
