THE RIGHT LIGHT IN ANY SITUATION
RGBWW . TLCI 98 . 120°
We combine high powered RGBWW LEDs with our custom color science to take white light quality to the next level as well as opening up creative possibilities with color and effects.
Mimic Any Light
Source Match
Wide CCT Range
2400-9900K
± Green / Magenta Adjustment
More Than 300 Digital Gels
Creative Freedom
RGBWW + Effects
High-Speed Mode
Taking Soft Lighting To The Next Level

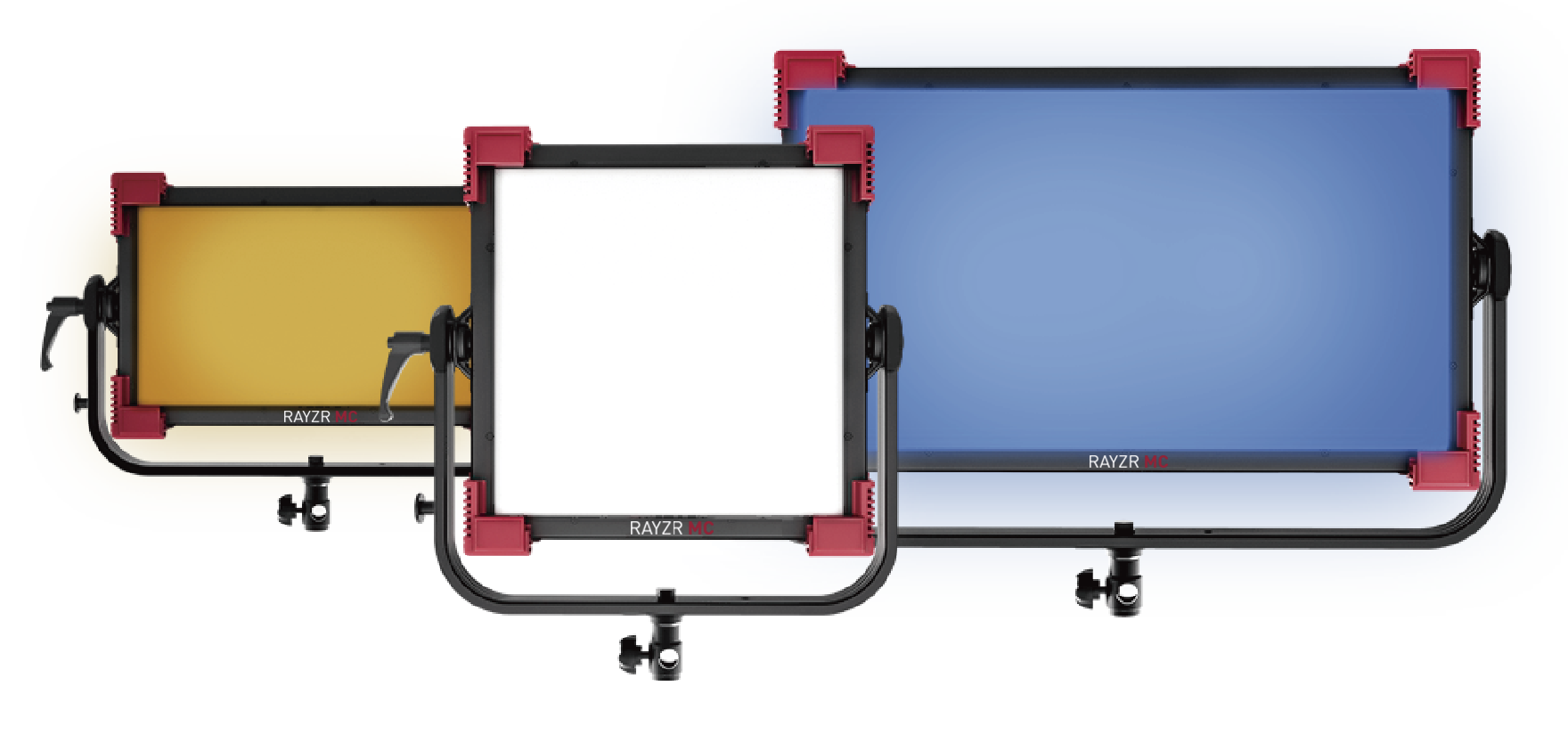

Meet the Rayzr MC (MultiColor) Series, advanced RGBWW LED Soft panels that give you the right light in any situation. Source Matching enables you to mimic any light source for consistent results making the MC series a perfect companion to the Rayzr 7 fresnels but also any other lightsources like tungsten lights, fluorescent or the sun. Being fully color tunable, offering a wide color temperature range and white light with perfect color reproduction thanks to RGBWW LEDs, the MC series gives you full creative freedom.
> Source Match
Bring Consistency To Your Lighting
With Source Match you can make your lighting more consistent and save time in post fixing non matching lights . Our powerful light engine, utilizing the strengths of RGBWW LEDs, enables you to match any light source. Enter the x/y coordinates you measured and the MC series will be an exact match bringing consistency to your lighting.
SOURCE MATCH

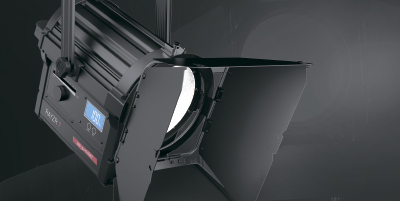

LED
HMI
Tungsten
Fluorescent
Sun
Extended CCT Range
With an extended color temperature range from 2400K to 9900k in White-Light mode you can adapt to any ambient light quickly.
2400 K
9900 K
±Green / Magenta
Adjustment
Adjust to a tint in other lights easily with ± Green / Magenta compensation.

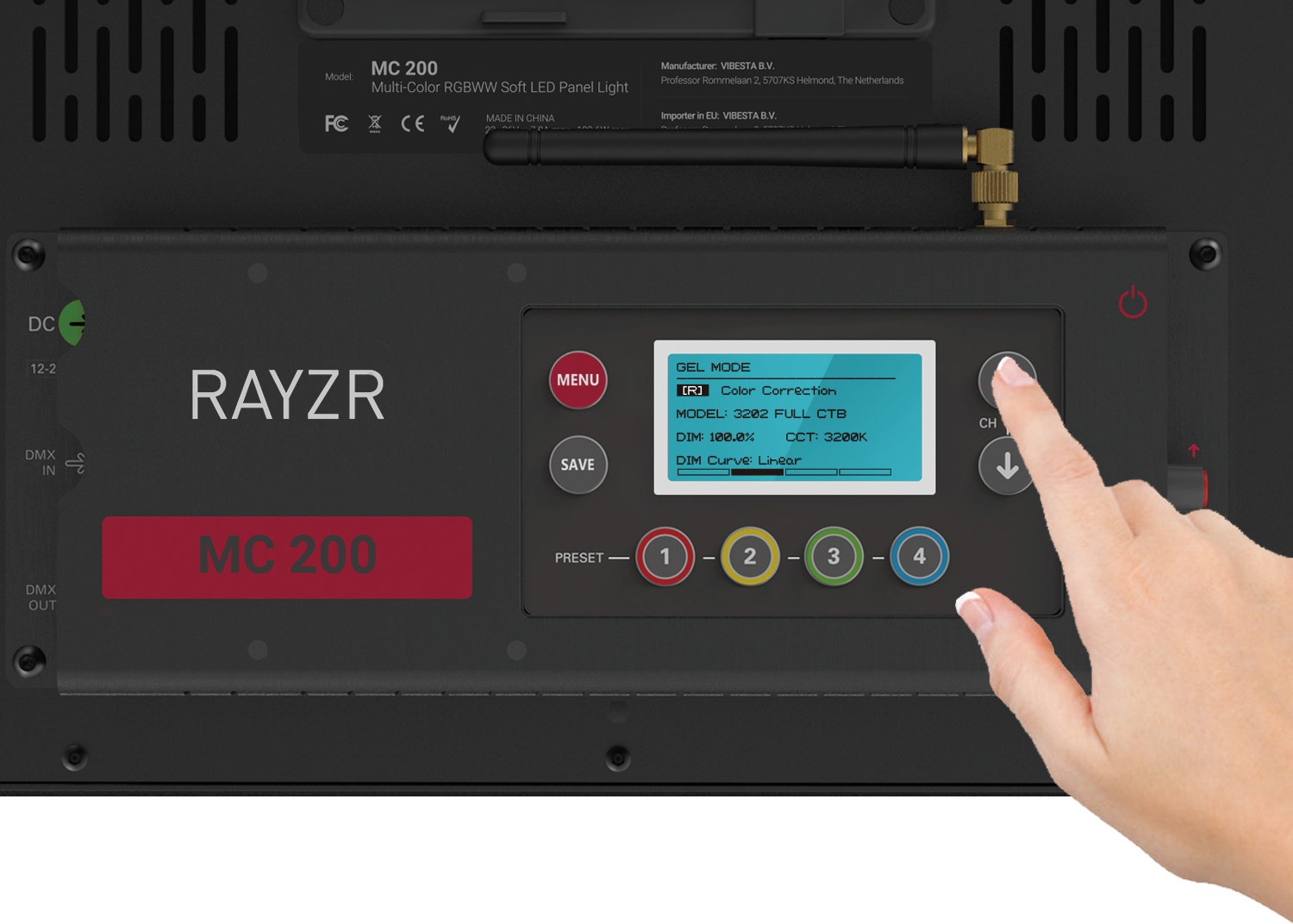

Filter Library At Your Fingertips
The MC Panel Gel library consist of more than 300 widely used filters available to you at your fingertips. No light loss, no GELS you need to carry with you, all filters digitally built-in.
> Creative Freedom
Fully Color Tunable
RGBWW Light
Every color available at your disposal. Select the color you need by HSI values (Hue angle, Saturation, Intensity), x/y coordinates, RGBWW values or by selecting a digital GEL filter from our built-in filter library of more than 300 classic gels.
CCT Mode
EFFECT Mode
HSI Mode
GEL Mode
X, Y Coordinates
RGBWW Mode
Lighting Effects
The MC series comes with a wide range of built-in adjustable lighting effects such as Party, Candle, Club, Cop Car, Fire, Fireworks, Light strobe, Lightning and Television.
Party
Candle
Club Light
Lightning
Cop Car
Fireworks
Light Strobe
Fire
Television
Paparazzi
High Speed Mode
Shoot at any frame rate and shutter angle without flicker. The base frequency of the MC series can be adjusted to provide flawless high-speed performance at any settings.
400 Hz ~ 20,000 Hz
> Quality Of Light
Perfect Color Reproduction
Using the RGBWW LEDs for color but also to improve white light, the MC series offers excellent color rendition throughout its entire adjustment range.
TLCI up to 98
Truly Soft
A fixed diffuser and a wide beam angle result in a uniform beam field and a truly soft light quality.

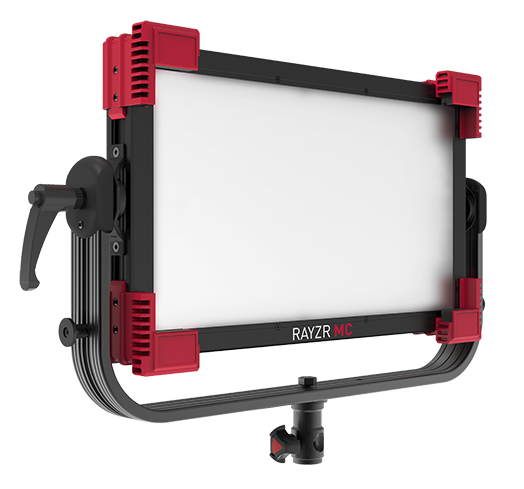

Wide & Bright

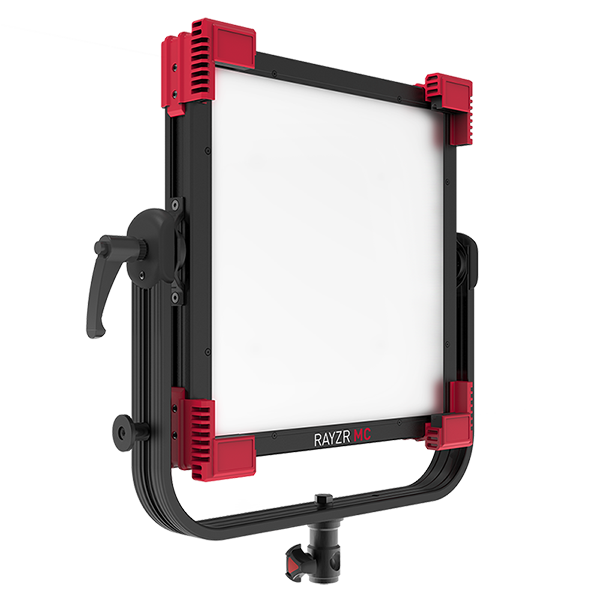

Available in three sizes, the MC series ranges from ultra-compact to ultra-soft always providing exceptional brightness and at the same time a wide, uniform beam field.
> Flexible To Use

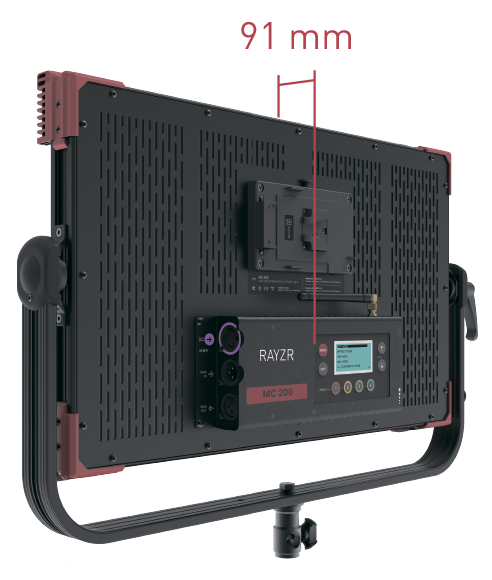

Slim, Lightweight and Solid
At 4,6 kg the MC 200 weights significantly less than other 2x1 RGB lights and is also much slimmer, so that it can be used in tight spaces and with little support. With a rugged metal housing it is made for everyday use.
Net Weight 4.6 kg

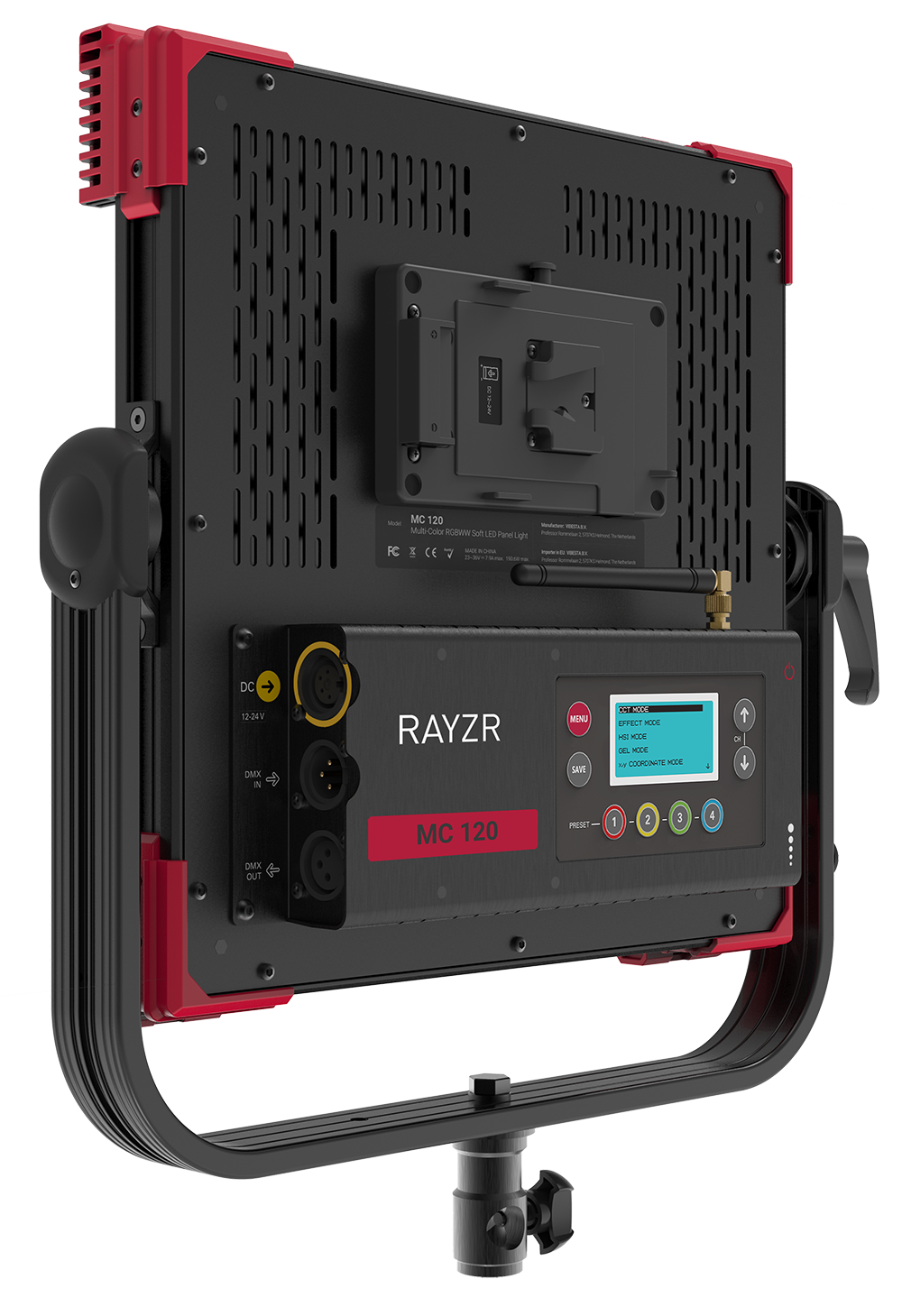

Battery Powered Mobility
Use the MC Series battery operated for hours on location. All models come with a battery plate and run with standard 14.4V V-Mount batteries.
*MC 200 only supports batteries with output currents higher than 12.5A.
Everything Built-In,
Ready To Be Used
The MC series is designed to be practical and easy to use with everything either built into the compact head or mounted to it by quick release for quick setup.

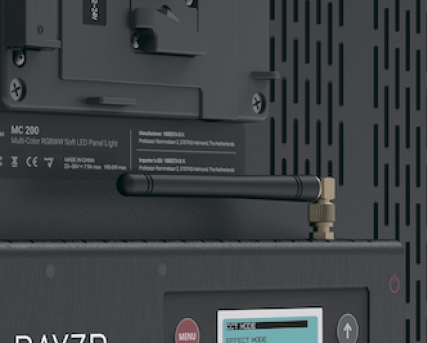

Wireless Control & DMX
With WiFi and DMX built-in, the MC series is easy to control and integrates well into any environment.

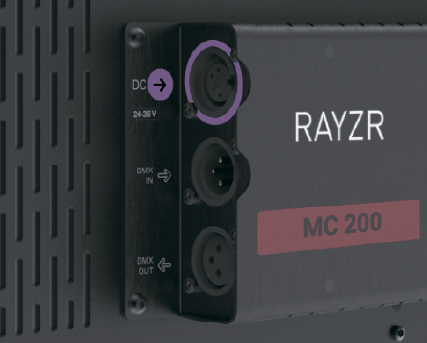

DMX built-in
WiFi built-in
Art-Net

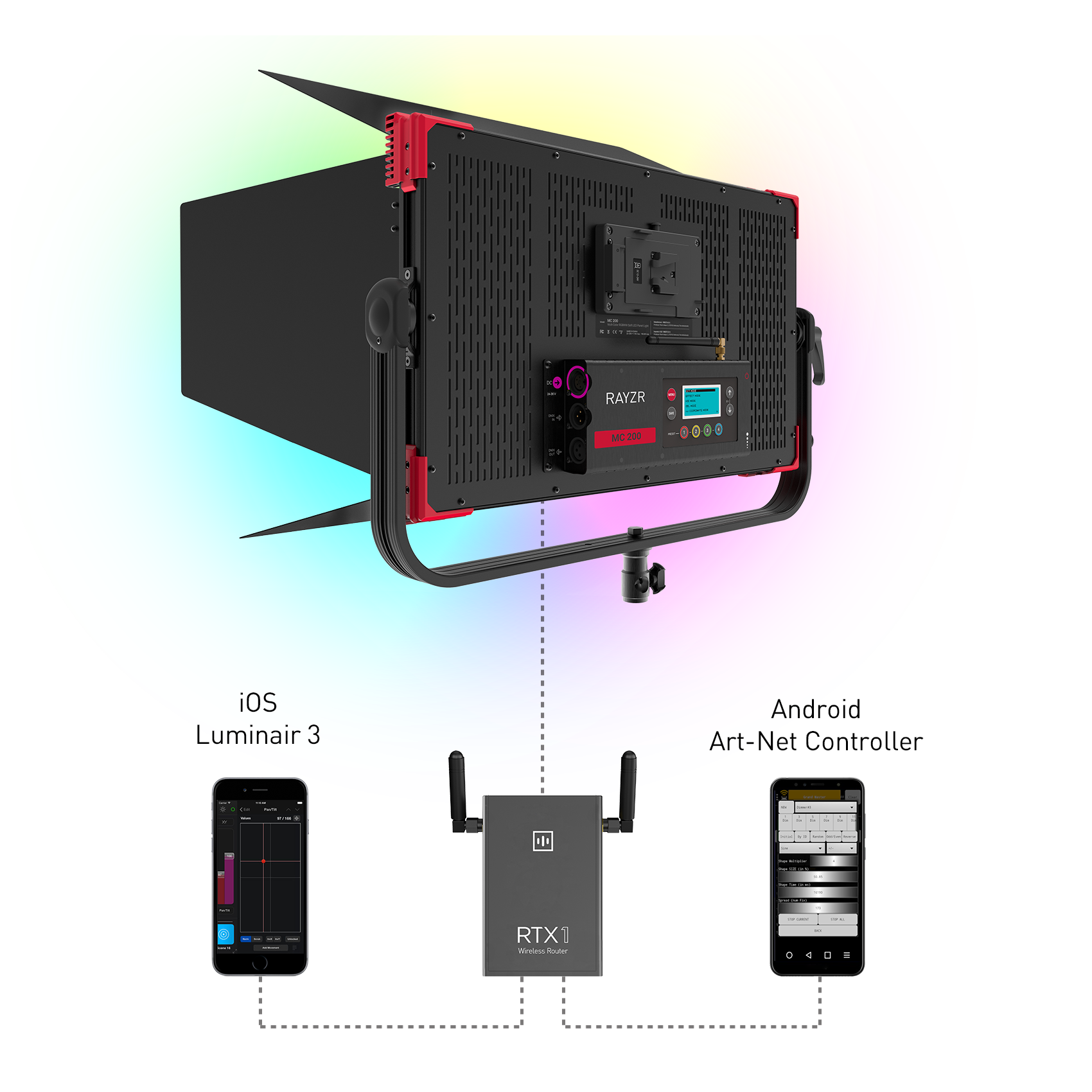

Art-Net Compatible With RTX-1 Router
The RTX-1 router is the central piece to include Rayzr MC lights with other compatible lights into a wireless network that can be controlled by any Art-Net compatible software like Luminair 3 for iOS or Art-Net Controller for Android.
*compatibility depends on software version
Art-Net copyright as before and Luminair copyright as on RTX1 page
Quick Release
Accessory System
A simple to use quick release accessory system lets you mount light shaping tools in a fast and stable way. Barn doors with extra long leafs are included with every panel.

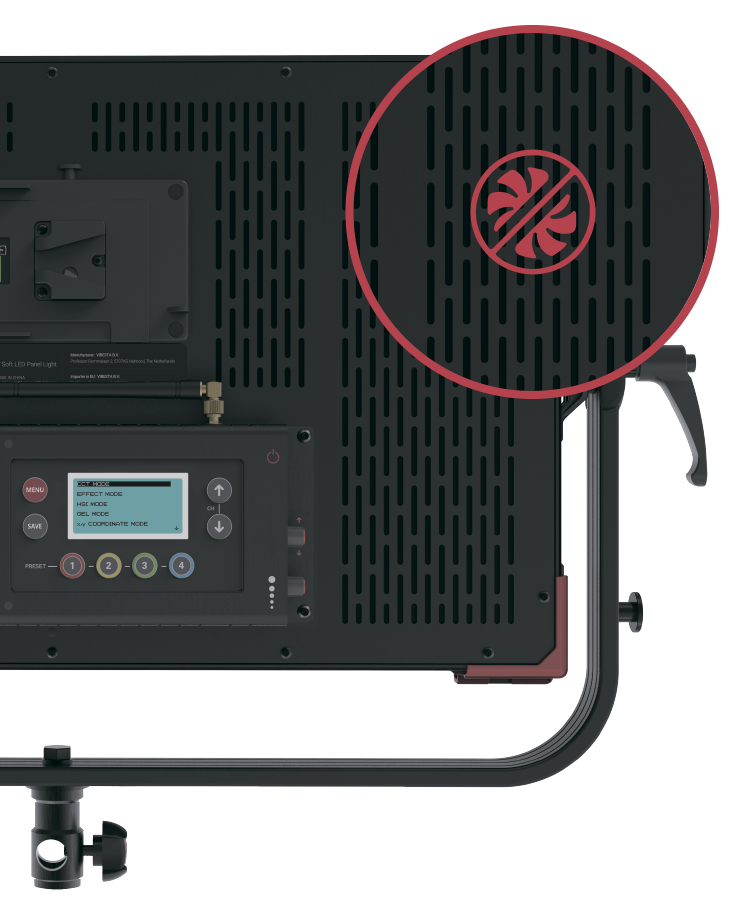

Silent Operation
The metal housing of the MC Series is designed and optimised for passive cooling through efficient internal airflow as well as acting as a heatsink. The MC100, 120 and 200 are fan-less designs.
Dimming Curves
Four user-selectable dimming curves provide fine grained control in specific situations: linear being a 1:1 translation, exponential providing fine control in the low end whereas logarithmic provides fine control in the high end and the "s" curve is a combination of exponential and logarithmic.
